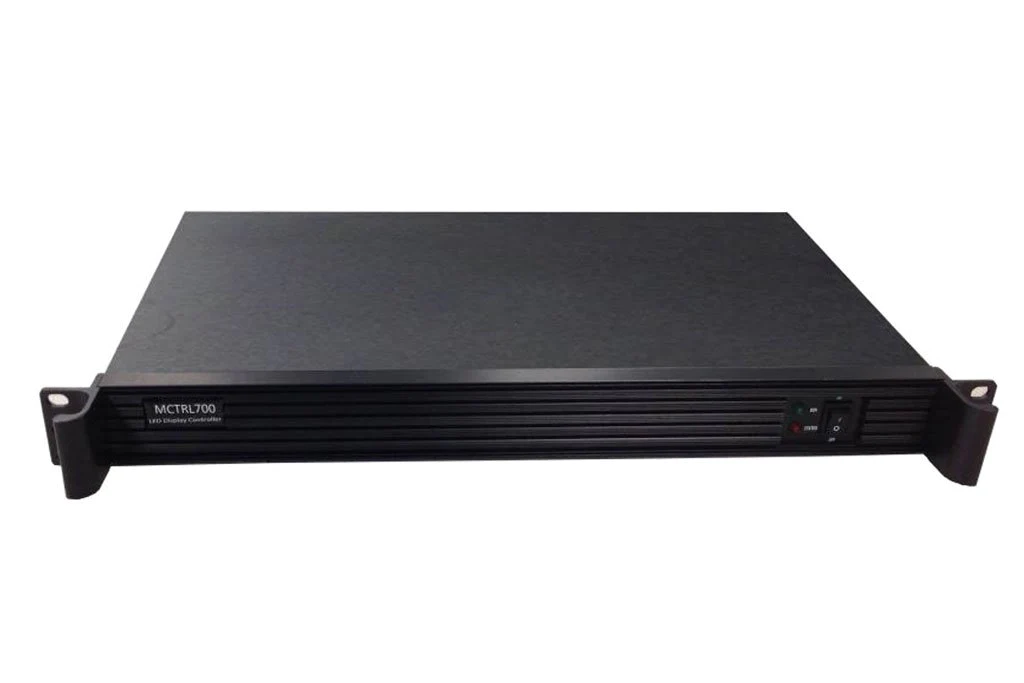

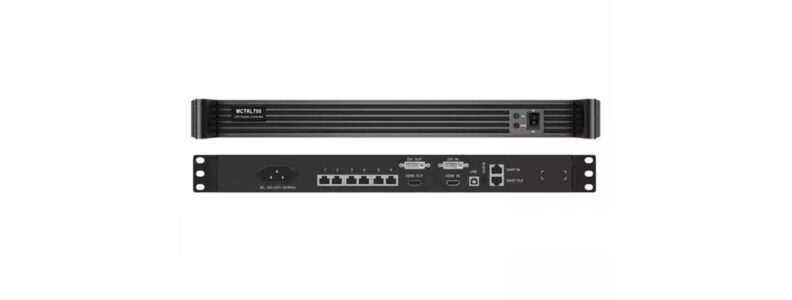

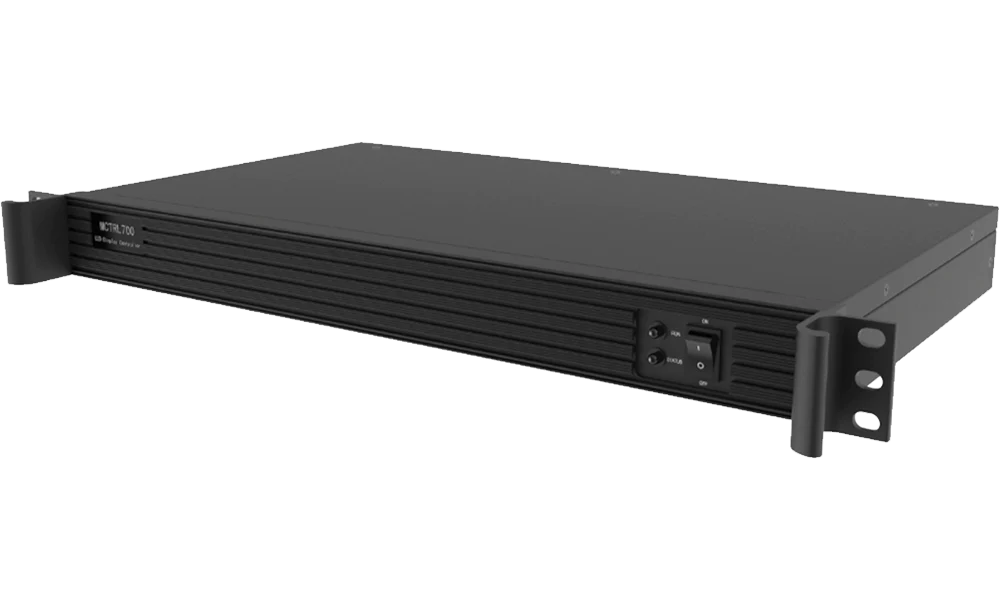

The MCTRL700 is an LED display controller by NovaStar. It supports 1x DVI input, 1x HDMI input, 1x audio input, and 6x Ethernet outputs. The maximum loading capacity of a single MCTRL700 is 1920×1200@60Hz. The MCTRL700 communicates with PC via Type-B USB port. Multiple MCTRL700 units can be cascaded.
The MCTRL700 can be mainly used in the rental and fixed applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.

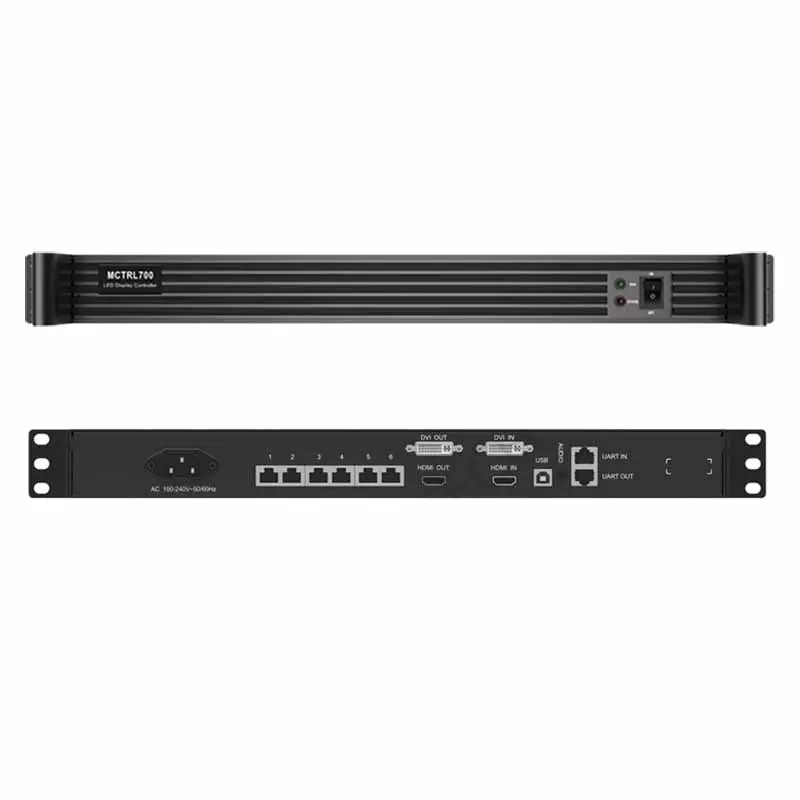

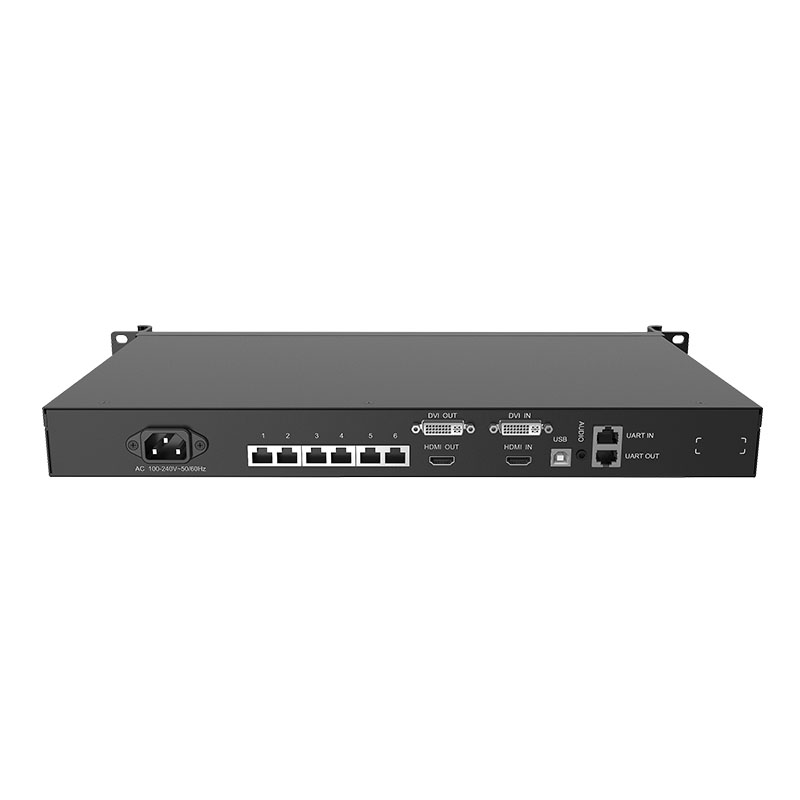

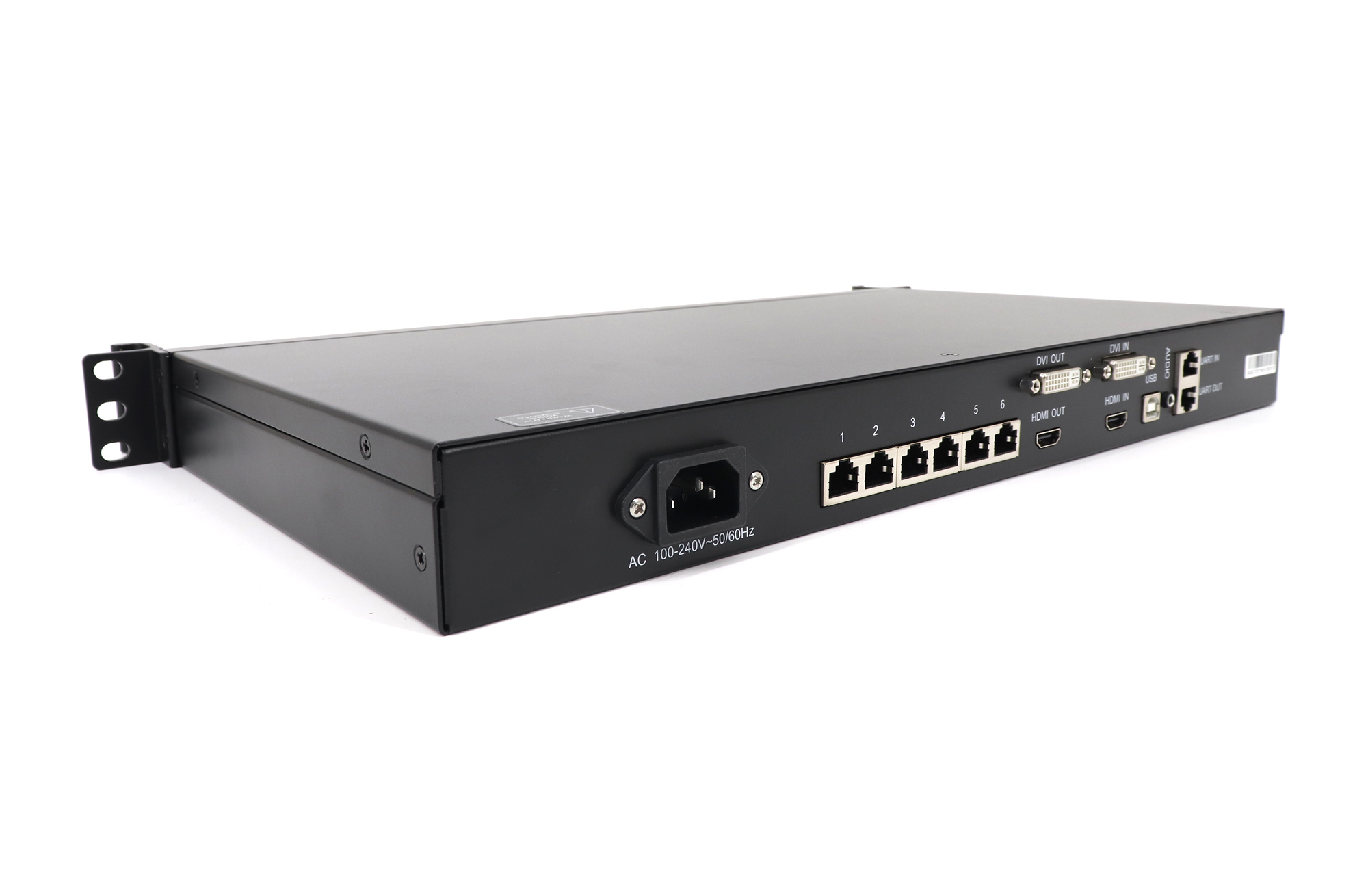

- 3x Input connectors (Used for device cascading. Up to 20 devices can be cascaded.)
- 1x SL-DVI (IN-OUT)
- 1x HDMI 1.3 (IN-OUT)
- Pixel level brightness and chroma calibration
- 1x AUDIO
- 6x Gigabit Ethernet outputs
- 1x Type-B USB control port
- 2x UART control ports
Working with NovaLCT and NovaCLB, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
